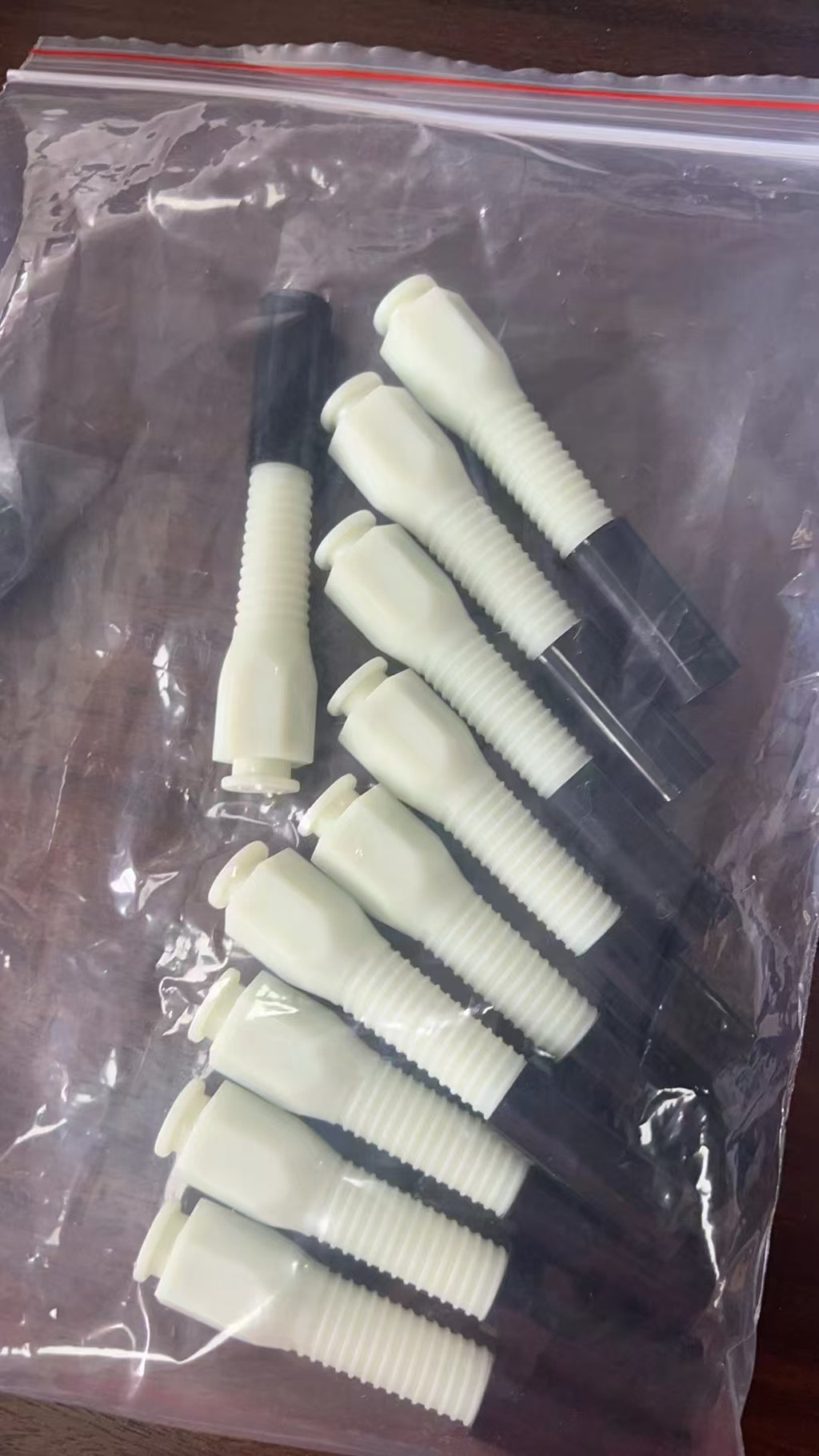

20 pcs/bag Hammer-In 5/8” Button Head Plastic Adoration Injection Packer Mechanical Packer Port – EZ Flow Model

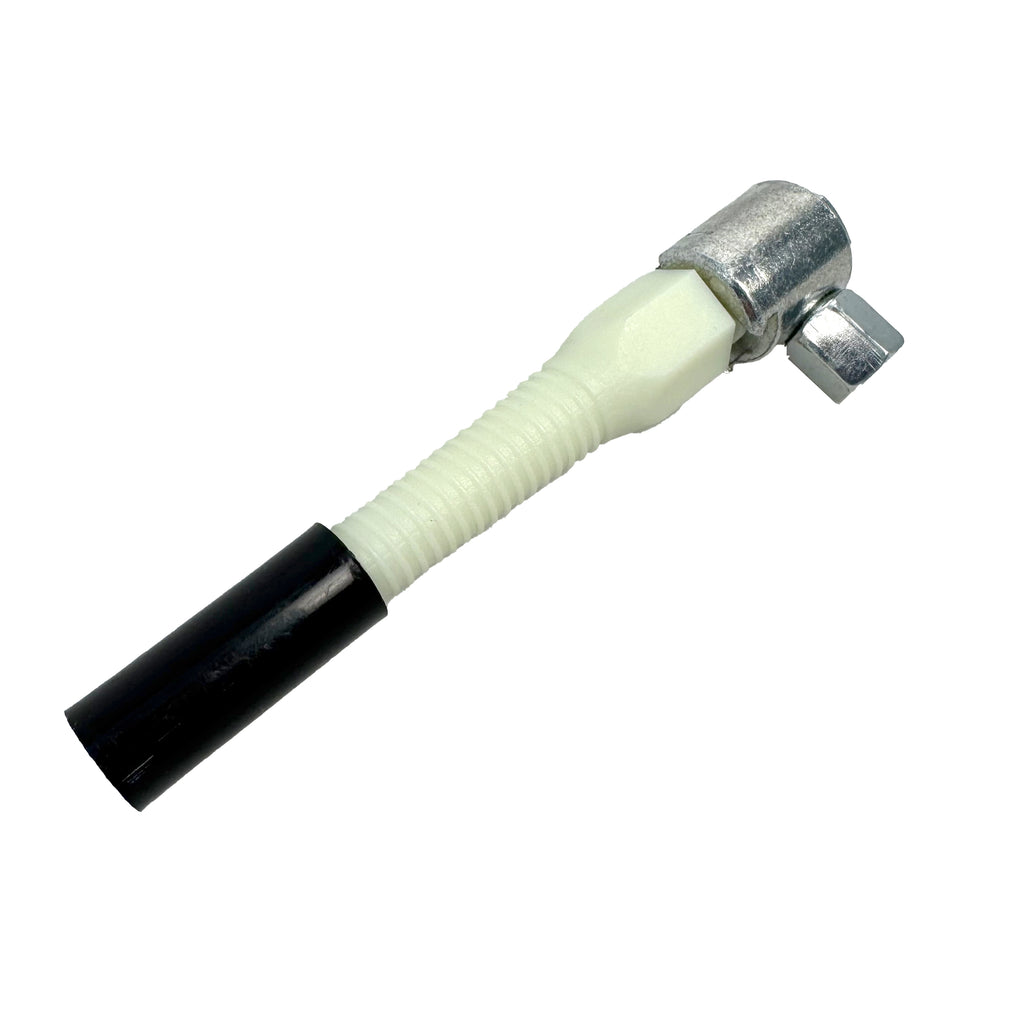

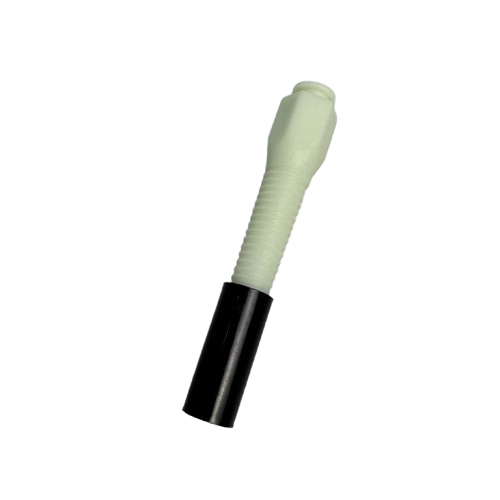

5/8" Plastic Button Head Injection Packer – EZ Flow High-Volume Grouting SolutionProduct Overview

The Adoration 5/8" Plastic Button Head Injection Packer is a professional-grade mechanical packer engineered for high-performance concrete repair, waterproofing, and structural stabilization.Featuring the EZ Flow internal design, this packer maximizes internal diameter and incorporates a free-floating ball valve to ensure maximum material flow while preventing backflow. It is specifically designed for high-demand applications including curtain injection, slab lifting, and soil stabilization.

Key Features

EZ Flow High-Output Design : Large internal diameter combined with a free-floating ball valve allows increased flow rates and consistent material delivery under pressure.

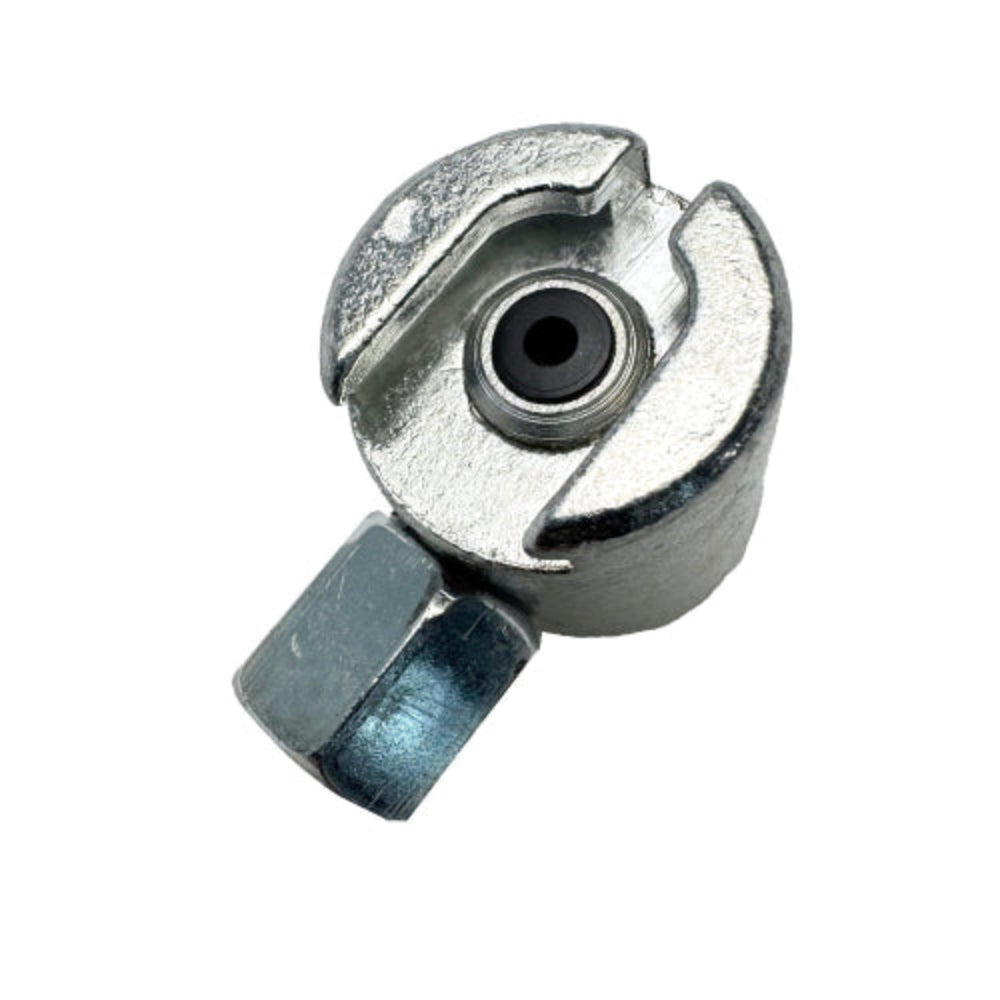

Universal Port Compatibility : Integrated button head fitting with the option to convert to Zerk-type connections using standard Adoration adapters. Compatible with most injection systems on the market.
Fast Installation : Hammer-in or screw-in installation allows quick deployment and reduces labor time on site.

Self-Sealing Structure : High-quality plastic body creates a compression seal without the need for additional washers, ensuring leak-resistant performance.

Material Compatibility

• Polyurethane (PU)
• Acrylic Resin
• Acrylate Gel
• Epoxy Resin Systems

ApplicationsConcrete Crack Injection : Provides secure and leak-resistant connections under high injection pressure.

Underground Waterproofing : Reliable performance in basements, tunnels, and other damp environments.

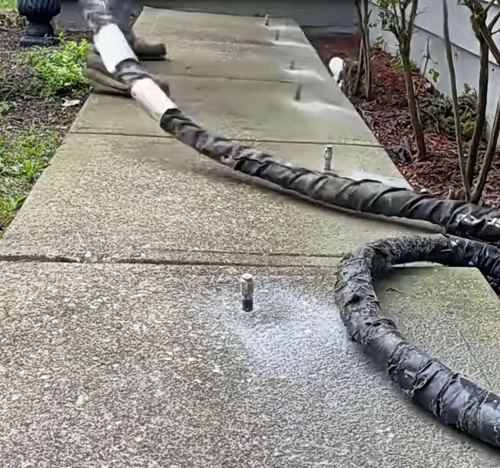

Slab Lifting and Leveling : Designed for use with polyurethane foam systems requiring high flow rates for controlled slab elevation.

Slab Jacking and Void Filling : Supports stable and continuous injection for filling sub-slab voids and restoring structural support.

Soil Stabilization : Suitable for injecting expanding resins into loose or unstable soils to improve load-bearing capacity.

Universal System Compatibility : This packer is designed to work with a wide range of injection equipment, including:

• Manual injection pumps
• Electric and pneumatic grouting machines
• Polyurethane foam injection systems

The standardized 5/8" size ensures compatibility with common drilling patterns used across the industry.

Performance Advantage : The Adoration EZ Flow Plastic Injection Packer is built for contractors who require:

• High-volume material delivery
• Reduced installation time
• Consistent pressure performance
• Reliable sealing under demanding conditions

The removable sleeve design ensures strong anchoring during injection and easy removal after completion.
