High-Pressure vs. Low-Pressure Injection: When to Use an Injection Pump and When to Use a Syringe
In concrete crack repair, “higher pressure” does not automatically mean “better repair.” The right injection method depends on the structure, the crack width, whether water is actively leaking, the injection material, and the project specification.
For contractors, high-pressure injection pumps are often the practical choice for active water leaks, below-grade walls, elevator pits, manholes, lift stations, and production waterproofing work. For tunnels, rail work, delicate structures, fine cracks, and some government or transportation projects, low-pressure injection may be required because the goal is controlled penetration rather than force.
What is high-pressure injection?

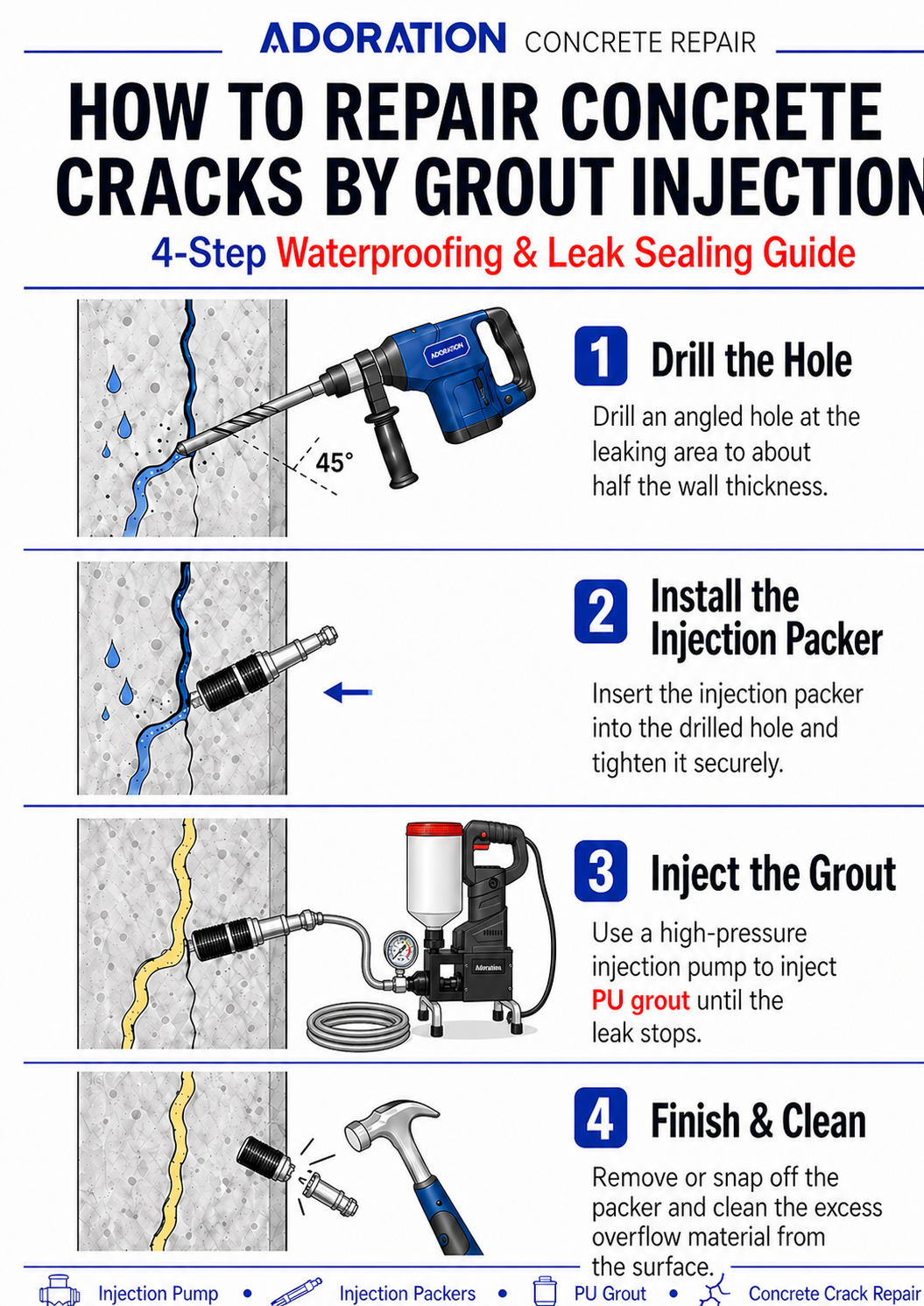

High-pressure crack injection uses an electric, pneumatic, or cordless injection pump to push polyurethane, epoxy, acrylic gel, or other repair material through mechanical packers installed in drilled holes. It is commonly used when the crack is wet, leaking, deep, or difficult to fill by gravity or hand pressure.
Typical applications include active leak stopping in elevator pits, basement walls, retaining walls, tunnels, manholes, wet wells, and other below-grade concrete. The advantage is speed and penetration. The risk is that excessive pressure can widen cracks, move weak material, push water to a new path, or violate a project’s maximum pressure limit.
What is low-pressure syringe injection?
Low-pressure syringe injection uses a small injector, spring pressure, and adhesive surface-mounted ports. Instead of drilling and installing mechanical packers, the contractor bonds small base ports over the crack, seals the surface, fills the syringe, and allows controlled spring pressure to move resin into the crack.
This method is especially useful for fine cracks, epoxy structural crack repair, dry or damp cracks, masonry or historic repair, and specifications that require careful pressure control. It is slower than pump injection, but it gives the applicator more control and reduces the risk of disturbing fragile concrete or masonry.
Why some government, tunnel, and rail projects limit injection pressure
Transportation and public works projects often focus on controlled placement, monitoring, and specification compliance. In these settings, the engineer may limit injection pressure to avoid damaging the existing structure or forcing material into unintended paths.
One customer-provided example from Peru is the Lima Metro tunnel project, where a low-pressure injection requirement was reported as not exceeding 14 bar. That is approximately 203 psi. The source for this project information is SYZ SOLUCIONES EN LA CONSTRUCCION EIRL in Peru. We treat this as a project-specific requirement, not a universal rule.
U.S. public project documents show the same principle: pressure control matters. A California High-Speed Rail Authority Fresno Station Early Works specification for epoxy crack injection required equipment with automatic pressure control capable of discharging mixed adhesive at any preset pressure up to 160 psi, about 11 bar. FHWA guidance also discusses low-pressure epoxy crack repair and warns in a rock-slope resin context that higher pressure can create movement risk. Caltrans, meanwhile, recognizes epoxy use for pressure grouting cracks in concrete and pressure injection grouting of concrete pavement, emphasizing specification and manufacturer-instruction compliance.
High pressure vs. low pressure: practical comparison
| Question | High-pressure pump injection | Low-pressure syringe injection |
|---|---|---|
| Best fit | Active leaks, deep cracks, below-grade concrete, production repair work | Fine cracks, epoxy repair, delicate structures, specification-controlled work |
| Typical equipment | Injection pump, mechanical packers, couplers, hoses | Syringe injector, spring plunger, adhesive surface ports, surface seal |
| Common materials | Polyurethane, acrylic gel, epoxy, water-reactive grout | Low-viscosity epoxy or other materials approved for low-pressure injection |
| Main advantage | Speed, reach, and stronger driving force for difficult leak paths | Control, lower disturbance, and easier compliance with pressure limits |
| Main caution | Do not exceed the structure’s tolerance or specification limit | May be too slow or weak for active water leaks or larger voids |
How to choose the right method
Start with the specification. If a government, DOT, tunnel, rail, or engineer-issued document sets a maximum injection pressure, that limit controls the method. Next, look at the crack condition. Active water leaks and below-grade infiltration often require pump injection with polyurethane or acrylic systems. Dry, fine structural cracks may be better suited to low-pressure epoxy injection.
For many contractors, the best toolkit includes both methods: high-pressure injection pumps for leak repair and production work, plus low-pressure syringe or cartridge systems for fine crack repair and pressure-limited projects.
Where Adoration products fit
Adoration supplies injection pumps, packers, couplers, and concrete repair accessories for contractors who handle crack injection, elevator pit waterproofing, manhole repair, lift station work, basement waterproofing, and restoration projects.
For high-pressure and field production work, contractors can review injection pumps, S-10 instant-removal packers, slide couplers, and related parts at our online store:
View injection pumps, packers, and parts
For low-pressure work, the key is not just the tool but the specification: resin viscosity, crack width, port spacing, surface seal strength, injection sequence, and maximum pressure should all match the project requirement.
References and notes
- Federal Highway Administration (FHWA), “Guidelines for an Inspection-in-Depth of Latex Modified Concrete Overlay Construction,” lists epoxy resin injection with a low-pressure applicator as a crack repair method. Source: FHWA Construction Review.
- Federal Highway Administration (FHWA), “Context Sensitive Rock Slope Design Solutions,” discusses injectable resin in transportation rock-slope stabilization and notes pressure-related movement risk in resin applications. Source: FHWA Center for Local Aid Support.
- Caltrans Construction Manual, Section 95 Epoxy, identifies epoxy applications including pressure grouting cracks in concrete and pressure injection grouting of concrete pavement. Source: Caltrans Section 95 Epoxy.
- California High-Speed Rail Authority, Fresno Station Early Works – Depot Seismic Retrofit and Accessibility Renovations, Section 03 93 00 Epoxy Crack Injection, specifies injection equipment with automatic pressure control up to 160 psi. Source copy accessed via GovTribe public procurement file.
- Peru Lima Metro tunnel low-pressure injection requirement: maximum pressure not exceeding 14 bar, customer/project information provided by SYZ SOLUCIONES EN LA CONSTRUCCION EIRL. This is noted as a project-specific requirement.
