Void Filling Grout Injection for Settling Concrete: A Field Guide (with Packers)

Settling slabs, hollow-sounding floors, and minor foundation movement often share one root cause: loss of support under or behind concrete. When soil erodes, consolidates, or is washed out, voids form—and concrete can crack, drop, or “pump” under load.

Void filling grout injection (cementitious pressure grouting) is a common method to restore support by pumping a flowable grout into the void until it’s filled and load is re-distributed. This guide explains the process, practical sequencing, and where ACST injection packers fit in for better control.

What is void filling grout injection?

Void filling grout injection is the process of injecting a pumpable grout (often cement-based) into a cavity beneath slabs or behind walls to:

Fill empty space and reduce future settlement
Re-establish bearing support
Reduce water migration pathways in some assemblies
Stabilize surrounding soils (depending on grout design)

It’s different from crack injection for structural repair. In void filling, the target is volume (the void), not just a single crack plane.

When is grout injection a good fit (and when it isn’t)?

A contractor should evaluate access, risk, and expectations before mobilizing.

Good candidates

Slabs that have settled but are largely intact
Localized washout voids near drains, downspouts, utilities
Voids behind retaining walls (with careful pressure control)
Industrial floors where re-leveling tolerance is moderate

Use caution / consider alternatives

Active, ongoing water flow that will continue eroding soil (fix drainage first)
Highly compressible soils where long-term consolidation is the real driver
Situations requiring precise lift and final elevation control (may need slabjacking plan + monitoring)

Grout selection basics (cementitious vs. other options)

For void filling, teams commonly use cementitious grouts because they are:

Compatible with concrete substrates
Cost-effective for larger volumes
Tunable for flow and set time

Key design variables (confirm with your engineer/spec):

Water-to-cement ratio (flow vs. strength vs. bleed)
Aggregate size (pumpability through hoses/ports)
Additives (anti-bleed, accelerators, superplasticizers)

If the project is primarily about stopping active water ingress through cracks, polyurethane injection may be more appropriate; if it’s about restoring support, cementitious void filling is usually the starting point.

Typical field workflow (step-by-step)

Below is a practical sequence used on many void-filling scopes.

1) Confirm the void and its extent

Methods vary by site:

Tap testing (hollow sound)
Core holes and probing
Ground penetrating radar (GPR) where available
Review drainage patterns (the “why” behind the void)

2) Plan injection points and spacing

Common patterns:

Grid spacing based on slab thickness and suspected void size
Extra points near edges, joints, penetrations, and settlement cracks

3) Drill ports / install packers

If injecting through existing cracks or drilled holes, mechanical injection packers can help you:

Maintain a sealed connection under pressure
Reduce blowback and mess
Control flow direction and isolate zones

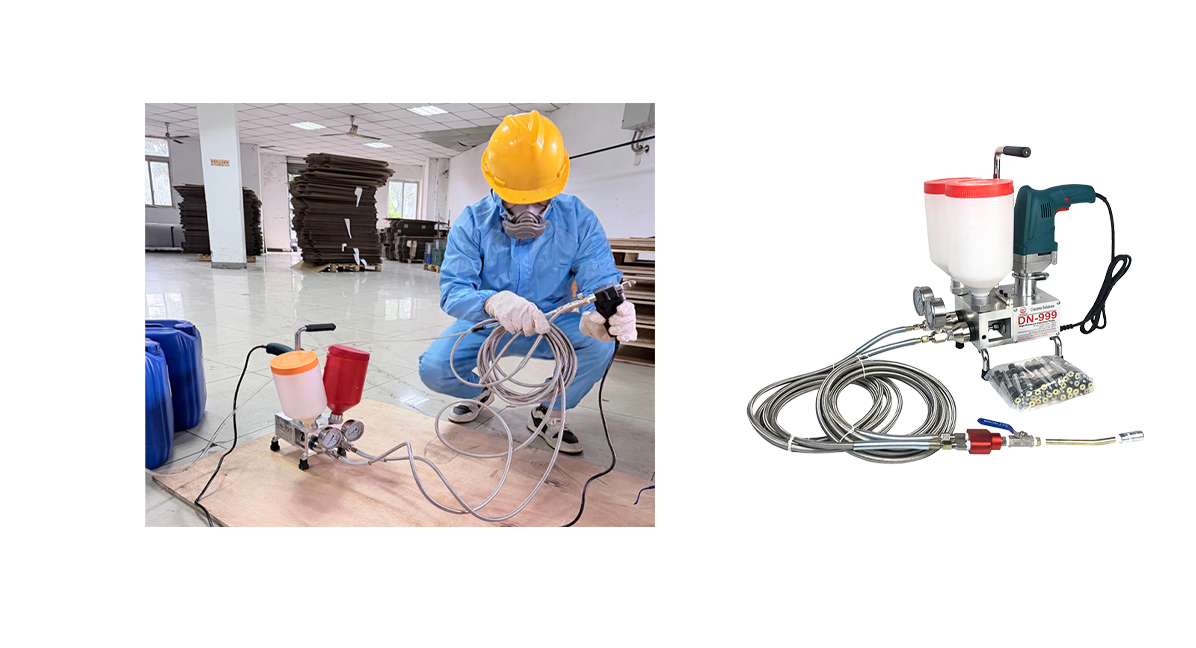

Natural product integration: Many crews pair a grout pump with ACST injection packers (selected by hole diameter and substrate condition) to create repeatable, pressure-capable injection points.

4) Start low pressure, increase gradually

Best practice is to start low and watch for:

Grout take rate changes
Unexpected emergence at adjacent cracks/joints
Surface heave or rapid lift (stop and reassess)

5) Refusal / acceptance criteria

Define “done” in advance (spec-driven). Examples:

Stable pressure at a defined max with minimal grout take
Volume injected approximates estimated void volume
Observation ports show grout arrival

6) Patch and document

Remove packers (if temporary), patch holes with suitable repair mortar
Record injection volumes per port and pressure ranges

Where injection packers help most in void filling

Even though void filling can be done through open holes, packers add value when:

You need consistent sealing across multiple ports
You’re injecting in areas with backpressure
You want to sequence zones (inject, monitor, cap, move)

Tip: Keep a mixed set on the truck—different diameters and lengths—to match slab thickness and drill conditions.

Common mistakes (and how to avoid them)

Skipping root cause (drainage): grout can fill today’s void; water can create tomorrow’s void.
Overpressurizing: may lift slabs unevenly or damage weak substrates.
Inadequate venting/monitoring: can trap air and mislead volume estimates.
Wrong viscosity: too thick won’t travel; too thin may bleed/segregate.

Internal links (recommended for shop.adoration-us.com)

Injection Packers collection/category page (choose by hole diameter)
Grout injection pumps or accessories page
Blog post: “How to choose a mechanical injection packer”

External links (reference only)

ICRI (International Concrete Repair Institute): https://www.icri.org/

ACI (American Concrete Institute): https://www.concrete.org/

FAQ (for customers researching void filling)

Does void filling grout injection stop settlement permanently?

It can restore support and reduce movement, but long-term performance depends on addressing the underlying cause (washout, drainage, soil conditions) and on correct grout design and injection control.

How do you know when a void is fully filled?

Field teams look for reduced grout take, stable pressure behavior, and grout appearance at observation or adjacent ports. A defined acceptance criterion in the project scope is important.
